The SC-System

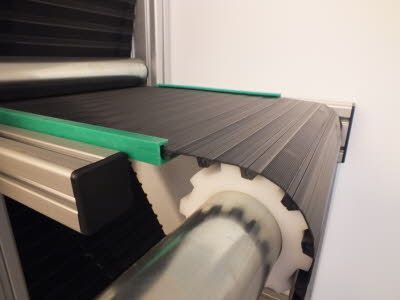

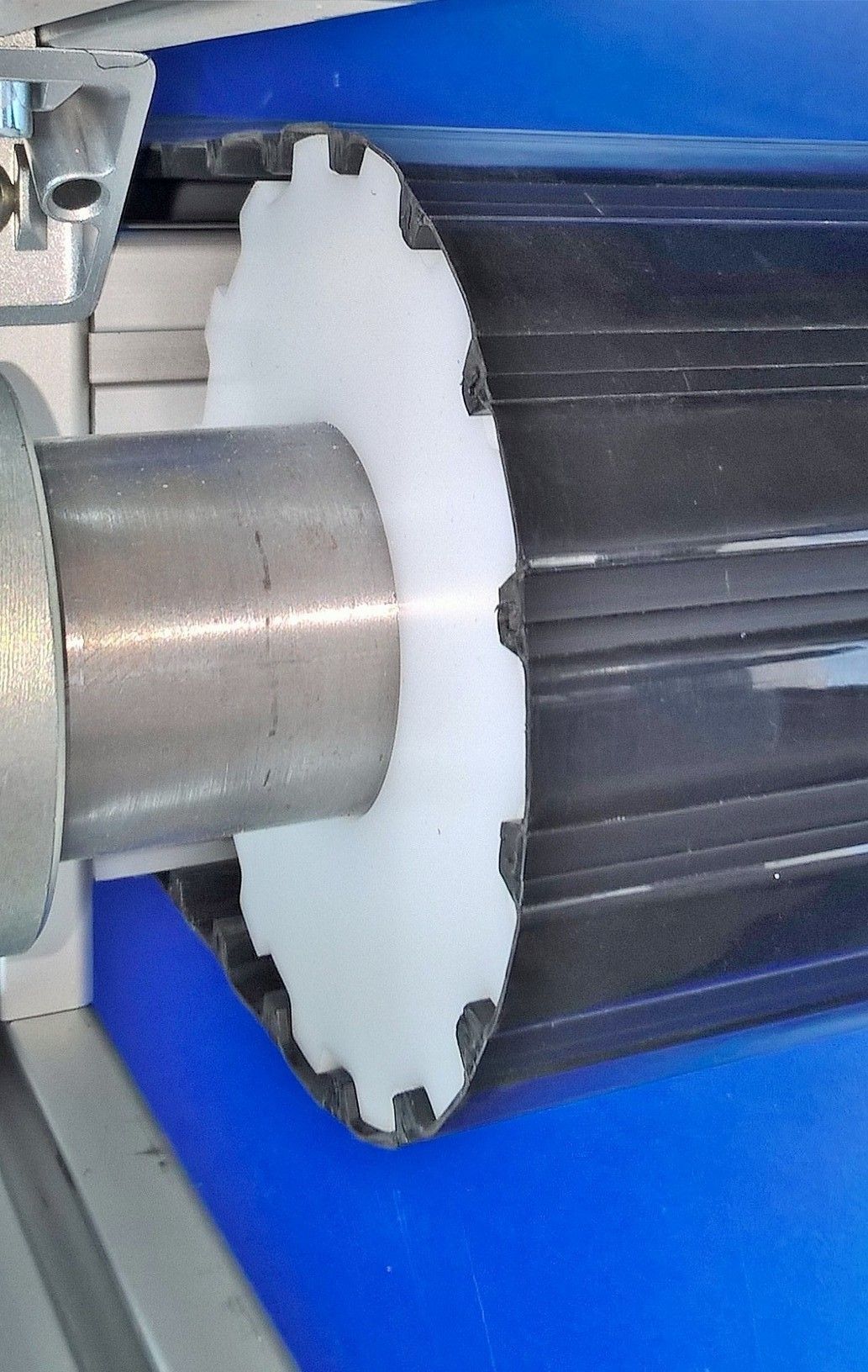

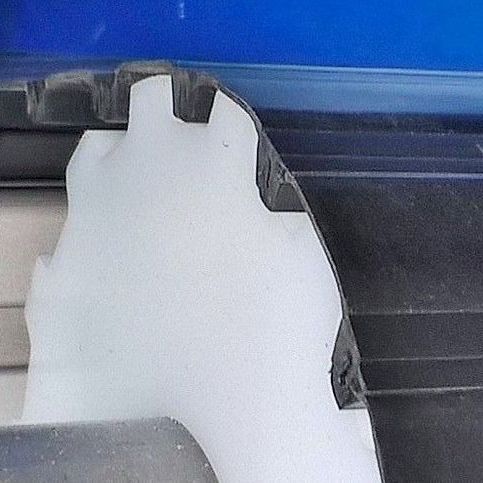

The SC-System is modular and impressively flat at just 6 mm height. The individual belt links are connected by clicking in, with two locking elements forming a drive tooth. This is combined with a toothed ring or a toothed pulley to drive the conveyor.

Typical areas of application:



  • Automation
  • Textile
  • Packing
  • Food
  • Mechanics
  • Logistics

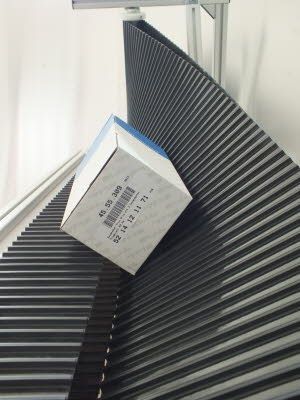

The lateral guidance is carried out by the rigid locking elements, which makes complex belt controls unnecessary. Of course, operation is also possible without toothed rings or toothed washers. Mounting with the teeth facing upwards opens up an alternative variant in which the teeth serve as surface drivers.


The SC-System adapts individually in length and width and changes can be implemented effortlessly. In the event of damage, individual hinge links can be replaced, supported by the light weight of the system. The one-piece design minimizes storage.

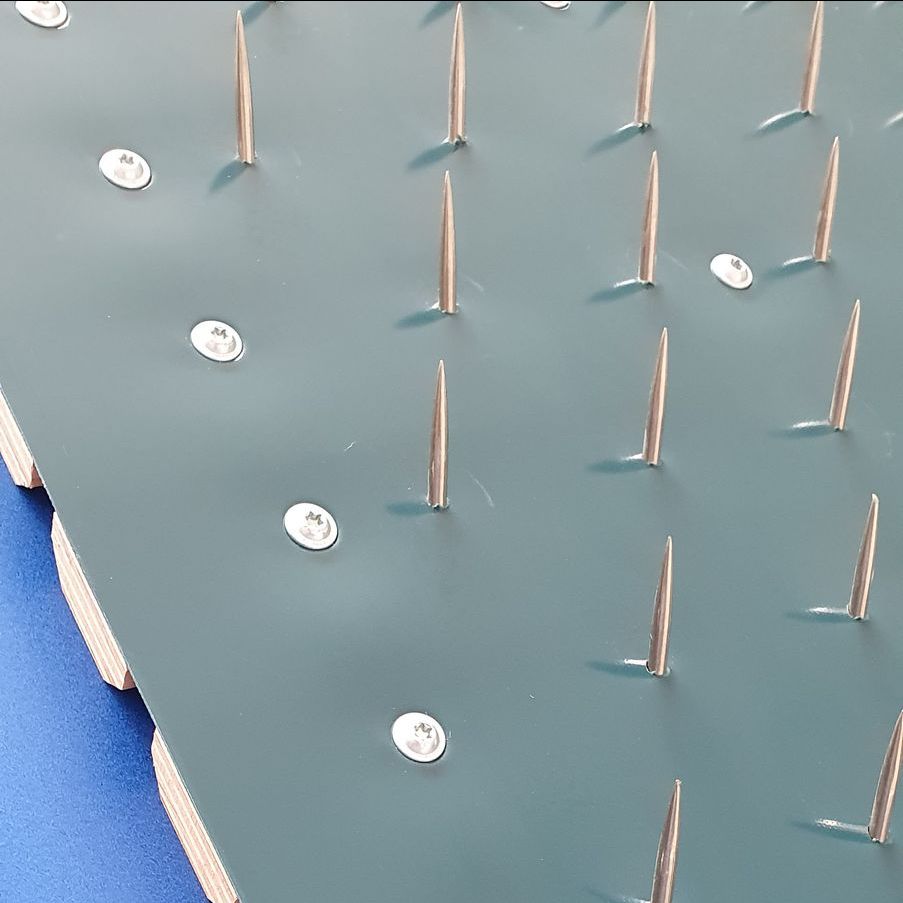

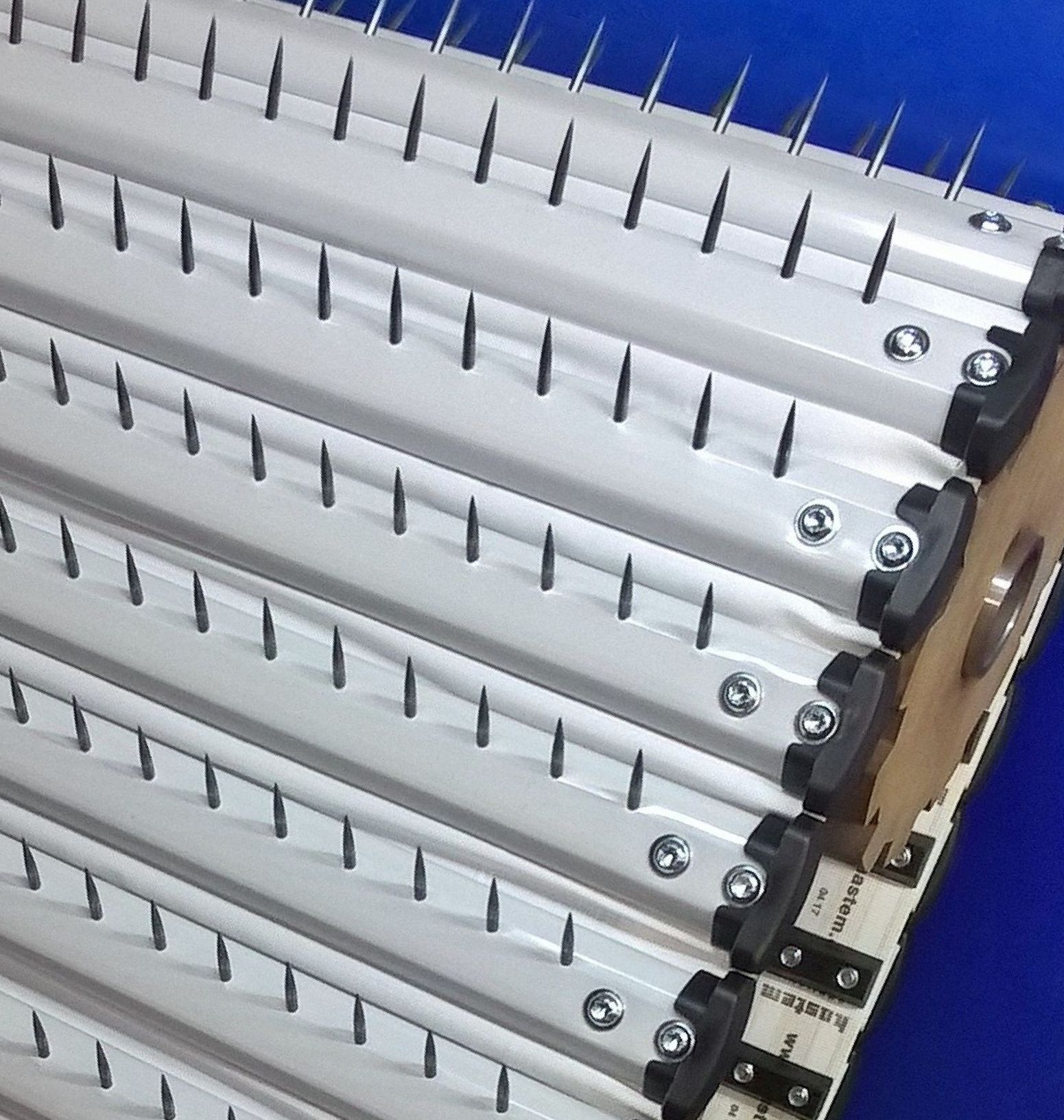

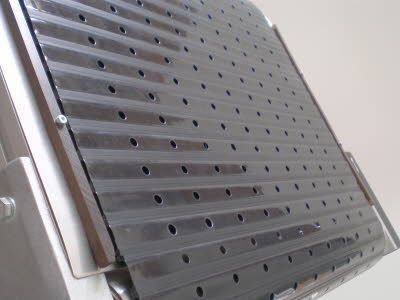

The flexible part of the belt links can be perforated, allowing alternative drivers to be attached.
